Fire Modeling with
Model Jet and Pool Fires
In just a few clicks, jet fires and pool fires can be defined using inputs of hole size, flow rate or power. The built-in AIChE® DIPPR® fluids database allows for single or multi-component mixtures – including heavy hydrocarbons.
Usability
Fire Modeling developed with ease-of-use in mind, modeling details such as meshing, boundary conditions, numerical setup, etc. are automated with in:Flux. Focus efforts on delivering results not simulation specifics.
Post-Processing

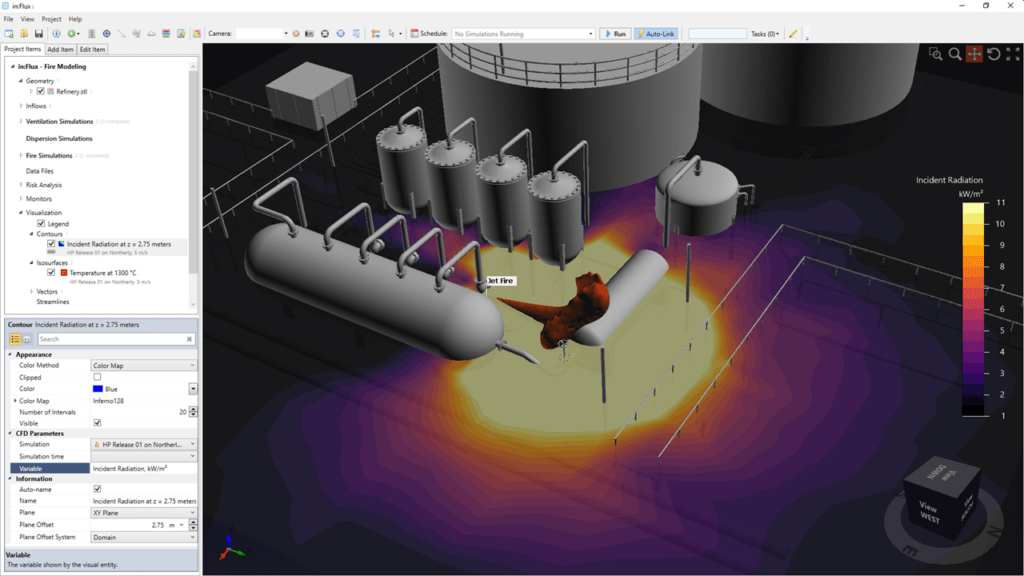

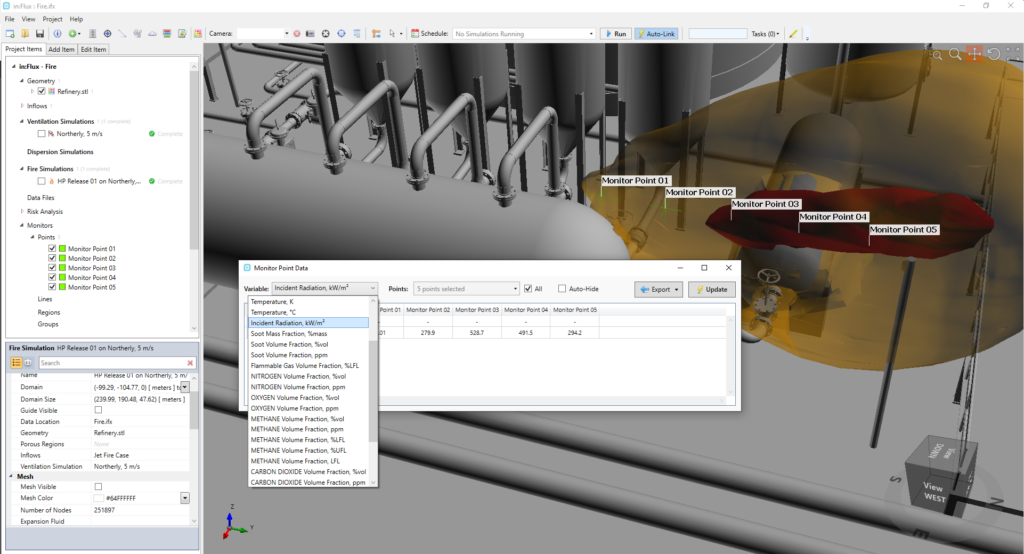

Visualize incident radiation, soot concentrations, temperatures, and more using contours and isosurfaces. Monitors provide locational data where precise values are required.

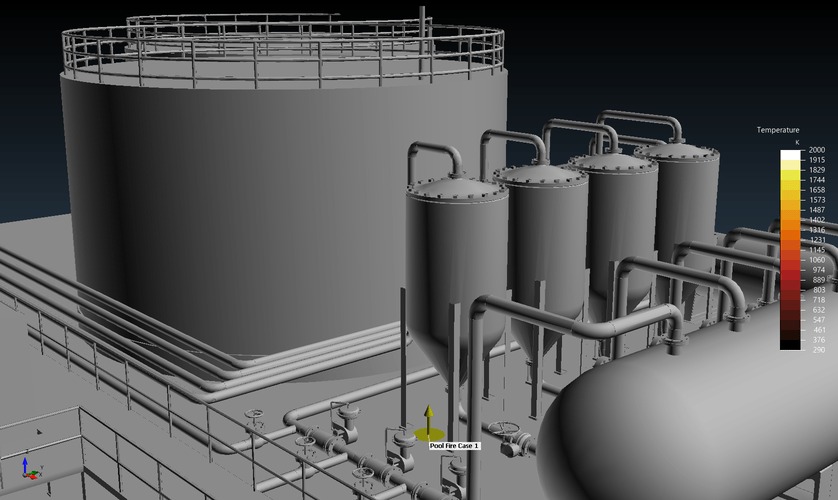

Transient Simulations
In addition to steady-state, transient fire simulations can be defined to view time-dependent results. Shutdown times and inventory variables are available for jet fire cases.

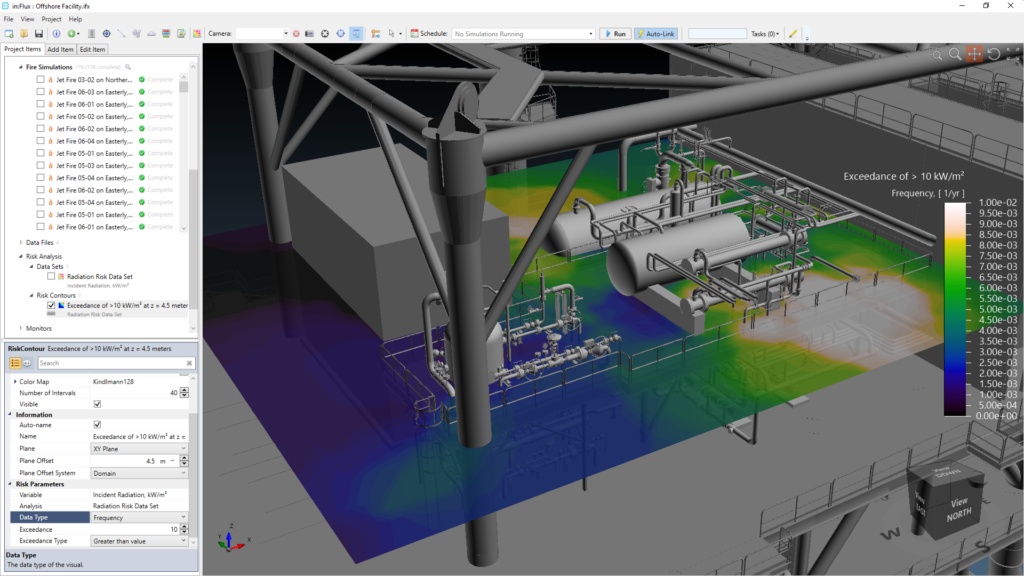

Generate Exceedance Contours
In combination with the ifx:Solve software, 1000s of fire simulations can be completed within a couple of days. Combine the results into a risk dataset to generate exceedance contours of radiation or other variables.

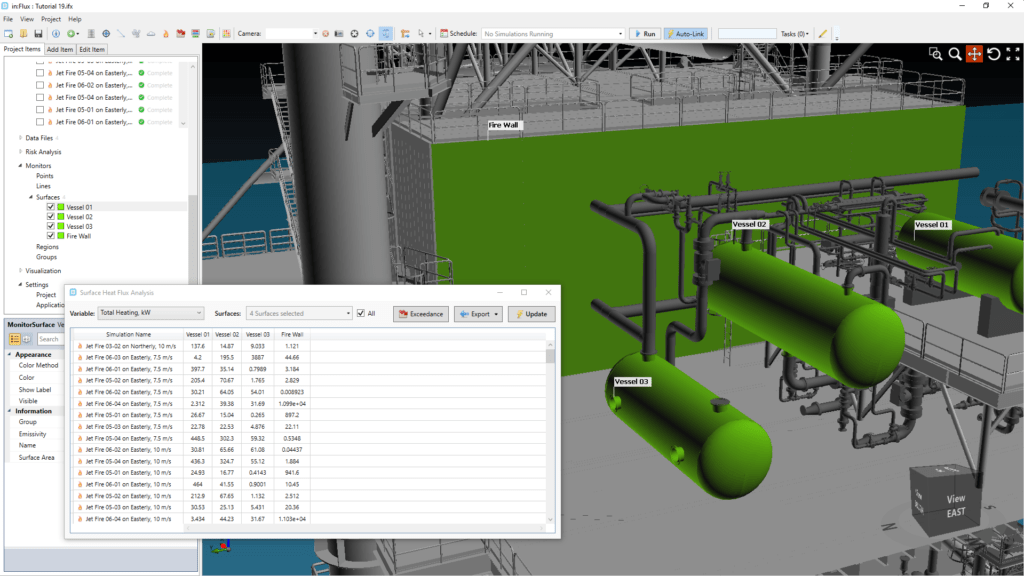

Surface Heat Flux Data
Monitor surfaces can be defined using the equipment pick tool for any equipment or structural item. Heat flux data such as radiative and convective heat, average and maximum heat flux, and temperature values can be reviewed for the defined surfaces.
