in:Flux v3.0 Release Highlights

in:Flux Feature improvements:

Version 3.0 is a major update to the in:Flux solver, to improve its capabilities for the wide range of applications for which it is now being used. The improvements particularly affect internal flows (indoor ventilation) and transient releases.

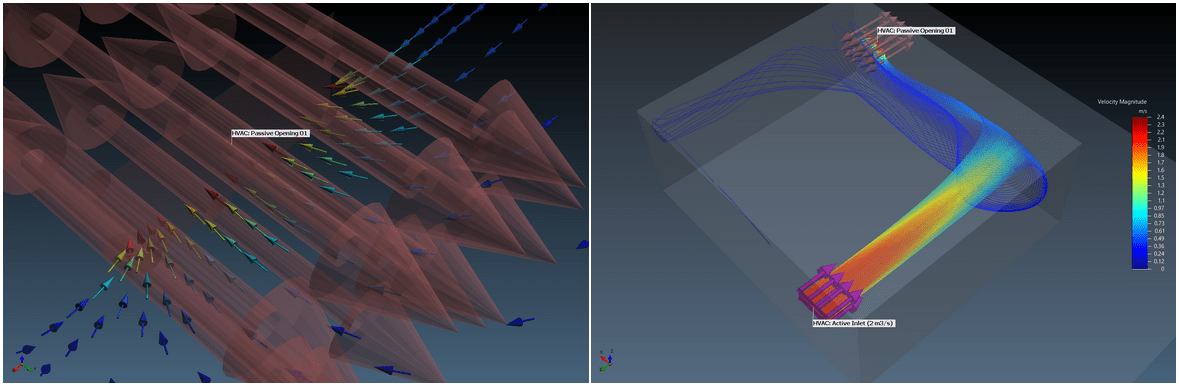

• Passive inlets and outlets can be set for indoor ventilation simulations.

• Monitor Regions now show minimum, maximum and average values in the monitor region for all variables. This can be accessed in the new Monitor Region Data window (Project Menu).

• Custom Volumes can now be set for ventilation simulations and accessed via the tab on the Volume Analysis window (Project Menu).

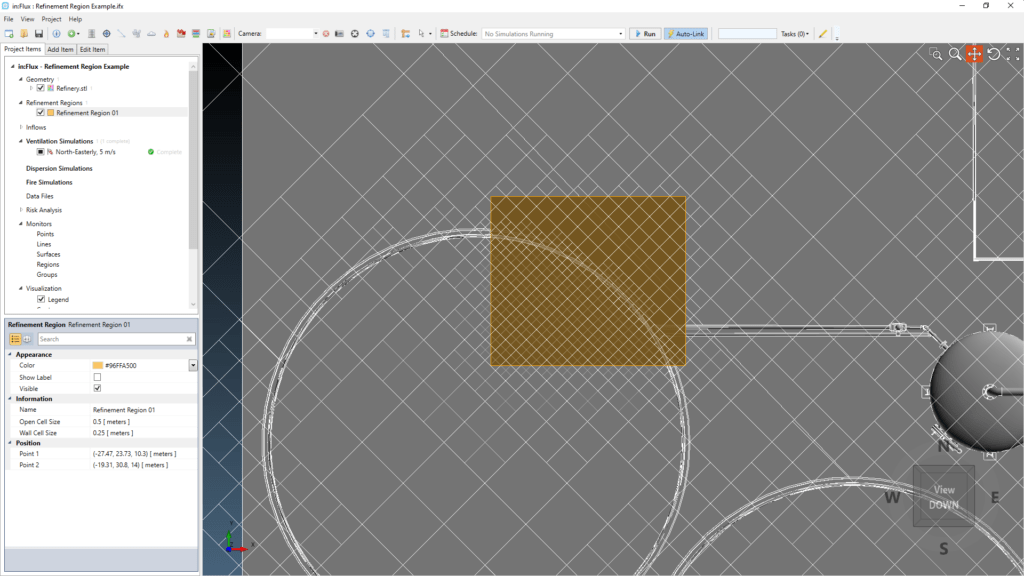

• Mesh Refinement Regions allow some user control over meshing, to account for cases where the automatic mesh cannot make a reasonable assumption about the required mesh resolution in certain regions. Refinement regions are available from the “Add Item” tab and should only be used in very specific circumstances.



• Pressure is available for post-processing.

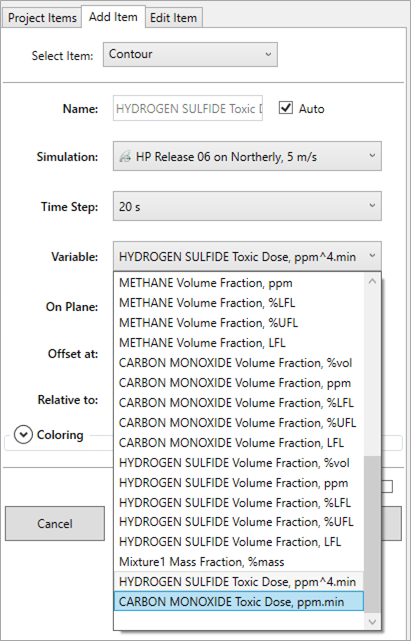

• Toxic Dose variable is available for transient releases of toxic gases.



• Thermal Dose variable is available for transient fire simulations.

Bug Fixes

• The improved solver now fixes several bugs in the previous versions.

Release Date:

February 16, 2023
